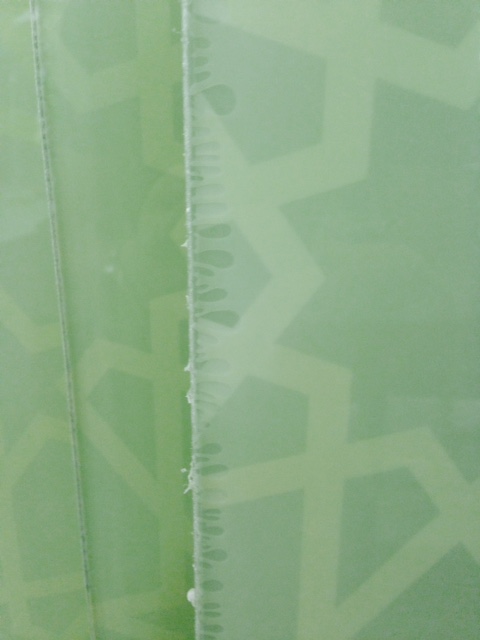

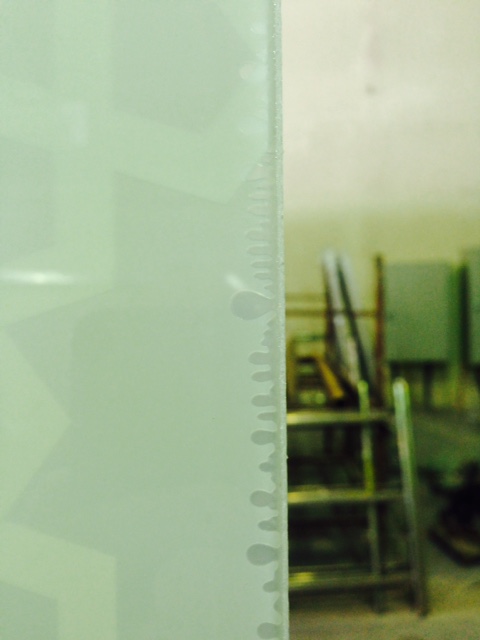

Glazing Cases: Bubbles around the eva laminated glass edges

Glazing Cases Bubbles around the laminated glass edges
Glazing Cases: Bubbles around the eva laminated glass edges
glass 6mm + 6mm No tempering

My Friend,
Based on your photos, it shows the EVA film in the edges is not enough to fully fill in the gap between the two glass.
The EVA film shrinks.
So, the solution is that when you prepare the pre-lamiated glass, please don’t pull the EVA film with too strength( Don’t stretch the eva film glass interlayer), or the eva film will shrink after the cut.
And the eva film can be 2mm wider than the glass, to make sure the EVA film is enough to fill in the glass gaps.

Dear Peter
As you said we didn’t stretch the film and reduced it to 115 and worked ok , there is printing on the glass .

My Friend,
So good the problem is solved.

——————
